Ruuvi BLE tag door position monitor

While perhaps not suitible for commercial applications I have implemented a door position sensor. Not only does it allow reporting of the door opening and closings but also the current position should it be left a-jar!

It uses an unmodified Ruuvi tag, factory installed firmware and uses RuuviCollector to update an influx database running on RuuviBerry installed on a Rasperberry Pi Zero W!

The Ruuvi includes an X-Y-Z accelerometer. When the tag is not moving, the Z component reflects the orientation of the tag. See previous discussion Garage Door Monitor

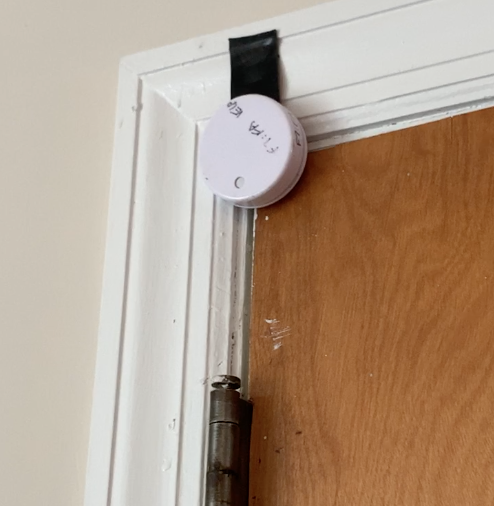

Attaching a Ruuvi tag to the door frame with a piece of double-sided mounting tape allows the tag to tilt based on the door position.


Click here for Video

2020-02-14T17:27:10.359970873-05:00 -0.164  -.
2020-02-14T17:27:19.295948153-05:00 -0.16    |
2020-02-14T17:27:31.338883754-05:00 -0.144   |
2020-02-14T17:27:43.376029198-05:00 -0.096   |
2020-02-14T17:27:52.356238751-05:00 -0.048   |
2020-02-14T17:28:04.364938067-05:00 -0.02    |   opening
2020-02-14T17:28:13.37577315 -05:00  0.112   |
2020-02-14T17:28:22.364090296-05:00  0.124   |
2020-02-14T17:28:34.336402424-05:00  0.264   |
2020-02-14T17:28:43.418743646-05:00  0.352   |
2020-02-14T17:28:55.362867678-05:00  0.524   |
2020-02-14T17:29:04.347345399-05:00  0.608   |
2020-02-14T17:29:16.322086916-05:00  0.732   |
2020-02-14T17:29:25.367256974-05:00  0.82    |
2020-02-14T17:29:37.303493498-05:00  0.872  -' max open
2020-02-14T17:29:46.307488655-05:00  0.864  =.
2020-02-14T17:29:55.303799785-05:00  0.776   }
2020-02-14T17:30:07.360117257-05:00  0.684   }
2020-02-14T17:30:19.29655135 -05:00  0.512   }  closing
2020-02-14T17:30:28.302990531-05:00  0.368   }
2020-02-14T17:30:40.32296598 -05:00  0.212   }
2020-02-14T17:30:49.30119734 -05:00  0.088   }
2020-02-14T17:31:01.340790436-05:00  0.024   }
2020-02-14T17:31:11.214035758-05:00 -0.064  ='
Perhaps one of you mechanical engineers with CAD / 3D printer skills can make up a more "professional" version.
